G737 iBeacon

G737 iBeacon
Gosafe offender tracking solution for home arrest

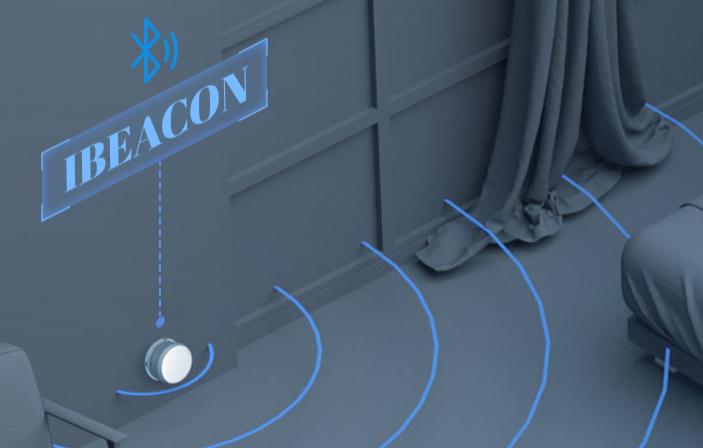

The Gosafe iBeacon is a BLE-based home monitoring accessory designed to work together with the G737 offender tracking device. It continuously broadcasts a unique ID signal via Bluetooth, allowing the tracker to detect connection status and report any changes directly to the monitoring platform. When the tracker remains connected to the iBeacon, GPS updates are paused to stabilize location data and reduce power consumption, while any loss of connection or physical tampering with the beacon immediately triggers an alarm and reactivates active GPS tracking.

  DOWNLOAD
g737 ankle tracker home beacon
g737 ankle tracker home beacon
LTE Connectivity
LTE Connectivity
Using LTE connectivity

G737HB home beacon device is using the latest LTE CAT-1 technology with fallback to 3G/2G connectivity which ensures that the device is always connected with the server and reports its heartbeat as well as any event occurs.


G737 Home Beacon LTE Connectivity
Backup Battery
Long lasting backup battery

G737HB Home Beacon is equipped with long lasting back up battery. This is to ensure that even main power is off or disconnected the home beacon is able to work on its own backup battery and can send an alert to backend server. The device can work more than 24 hours on it own battery where main power is disconnected.


G737 Home Beacon Backup Battery
Technical Parameters Home Beacon

Features

Compact Design
Compact Design
LTE Cellular connectivity
LTE Cellular connectivity
Internal back up battery
Internal back up battery
Wide range Bluetooth connectivity
Wide range Bluetooth connectivity
Movement Alert
Movement Alert
Built-in speaker & MIC
Built-in speaker & MIC

Specifications

General

Communication:

LTE/HSPA/GPRS and TCP/UDP/SMS/BLE

Operation Voltage :

5VDC or Internal Battery


Electrical

Operating Voltage:

5V DC Charger

Power Consumption

Working mode:

83mA

Backup Battery:

LIPO 3.7V 2000mAh

Battery Recharging 5V DC


Physicals

Dimensions:

95 (l) x 54 (W) x 36 (H)

Weight:

<115G


Cellular

Data Support:

SMS, TCP, UDP

GSM/GPRS Quad Band:

850/900/1800/1900 MHz

HSPA Bands:

800/850/900/1900/2100(Optional)

LTE Bands:

B1/B2/B3/B4/B5/B7/B13/B17(Optional)

GSM/GPRS Output Power:

Class 4 (2W) for 850 / 900 bands

Class 1 (1W) for 1800 / 1900 bands

GSM/GPRS Fallback:

GPRS Class 10

HSPA Data Rate:

5.76Mbps UL/7.2Mbps DL (Optional)

SIM Card:

M2M Embedded SIM or Micro SIM


Environmental

Operating Temperature:

-10 ~ +50°C

Storage Temperature:

-20 ~ +70°C

Humidity:

95%RH @50°C non-condensing

Shock & Vibration:

U.S. Military Standards 202G and 810F,

SAE J1455

EMC/EMI:

SAE J1113; FCC–Part 15B

RoHS:

Compliant


Buttons

SOS:

SOS button for help

SMS pre-configured numbers

Status LEDs:

Cellular, Power


Connectors, SIM Card Access

Mini USB:

1 Mini USB (configuration/debug)

BLE Antenna:

Internal

SIM Card:

M2M Embedded SIM or Micro SIM


On Board

CPU:

ARM Cortex M3

Flash Memory:

4Mbit (8000 records)

Bluetooth:

BLE 4.0

3D Accelerometer:

On Board

Accessory

Wall Charger

Accessories

Power Bank
Power Bank
I Beacon
I Beacon
